Cleaver-Brooks NATCOM Burner

Types: Hot water and steam for new boilers or retrofit applications

Size range: 12 to 360 MMBTU

Uses: For firetube, watertube, commercial watertube, firebox, and cast iron boilers. Ideal for everything from process heating applications to building heat, sterilization, humidification, and more.

Fuels: Natural Gas and light oil firing

Emissions: Available to < 30 ppm NOx, < 50 ppm CO

The ultimate Low NOx capability, flame stability, and rugged design, coupled with a high-efficiency operation, make Cleaver-Brooks’ NATCOM the choice of industrial burners. Quick easy start-up in less than three days saves customers thousands of dollars on new boilers and retrofit purchases. New or retrofit, NATCOM supplies burners to all major industries and applications.

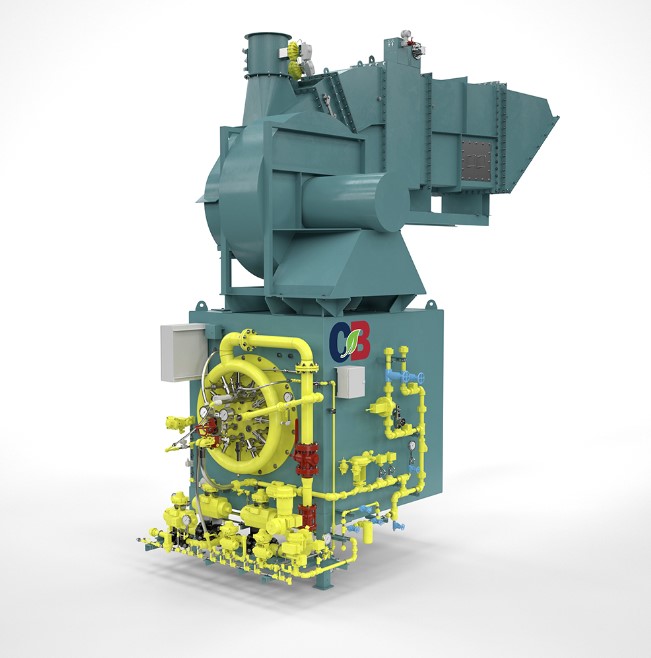

NCB Burner System

  • Unique packaged burner system for new boilers and retrofit markets
  • Use advanced CFD modeling
  • Equipped with advanced Natcom® design features, including externally adjustable gas injectors, Class-III igniters, and atomizers with coupling block valves
  • Natcom® burners feature emissions reductions of 50% compared to flaring and can achieve emissions goals of 9 ppm NOx. The high-efficiency burner design is engineered for multi-fuel firing, including renewables.

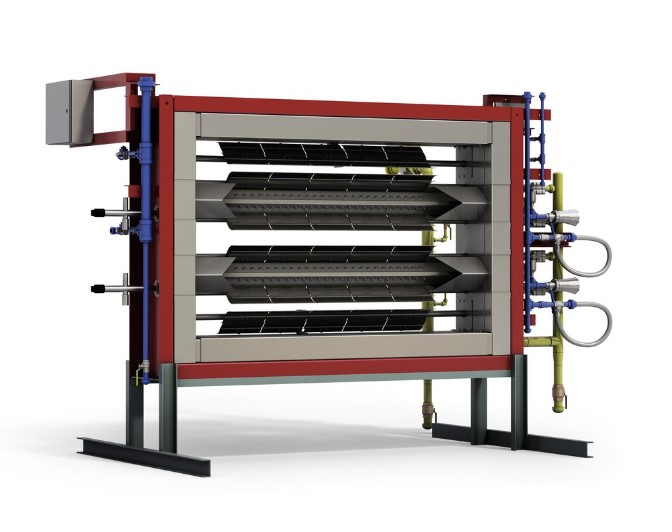

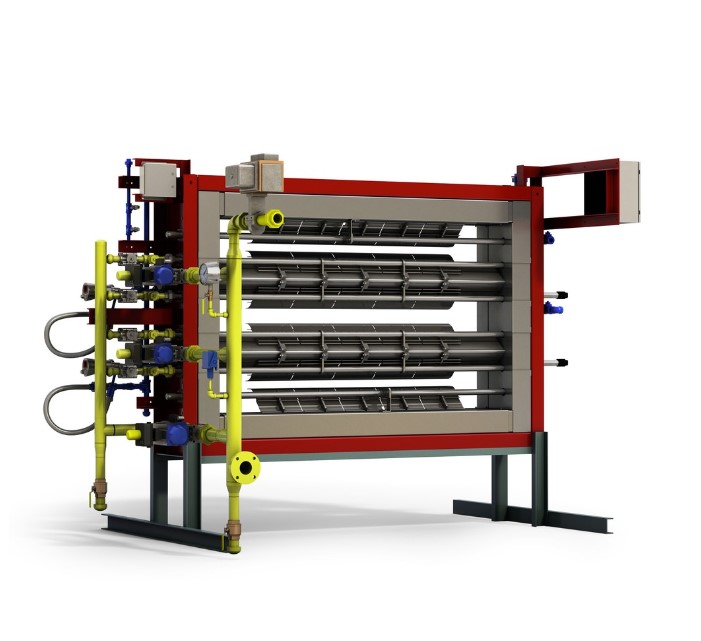

Duct Burner

  • Ensures the lowest levels of NOx, CO, VOC, and PM emissions available, even in the most challenging service conditions.
  • Steam applications
  • Supplements turbine in heat recovery steam generator (HRSG) applications
  • Natural Gas and Propane
