Cleaver-Brooks M5M Watertube Boiler
Size Range 2,000-6,000 MBH Input
Uses Process Steam, Industrial Process, Building Heat, Sterilization, Healthcare
Fuels Natural Gas, Propane
Pressure 15-500 psig Design Pressure (Steam) 160-250 psig Design Pressure (Hot Water)
Efficiency 80%
Emissions <20 ppm NOx without FGR and <10 CO as standard on natural gas

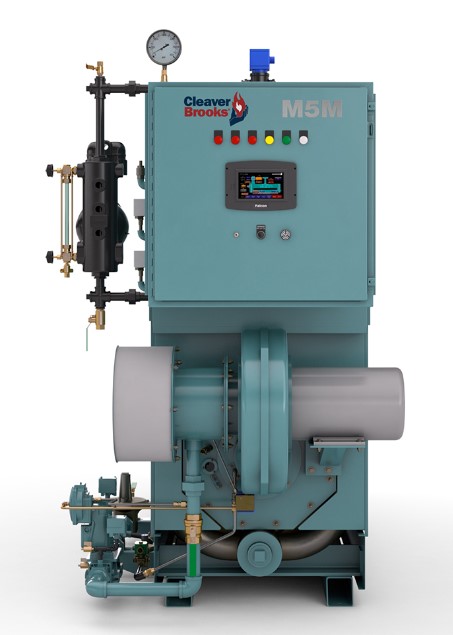

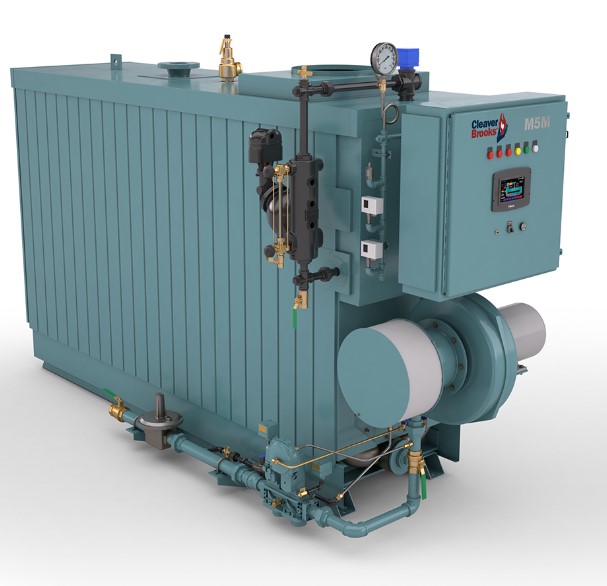

The M5M is a membrane wall watertube boiler that achieves best-in-class combustion performance with low emissions that can fit through a doorway. Premix burner technology enables the boiler to attain <20 ppm NOx without FGR and <10 CO as standard on natural gas. The linkageless burner provides fully modulating turndown without the use of complex air/fuel mixing valves.
