Cleaver-Brooks Firetube Steam Boilers

Size range: 15 – 2,200 HP

Uses: For reliable response for low/high-pressure process steam/heating loads, multiple fuel firing capability. Applications include indirect heating and process for various campus operations, medical facilities, pharmaceuticals, and manufacturing operations.

Fuels: Natural gas, #2 oil, #6 oil and combination

Pressure: Up to 300 psig

Emissions: less than 9 ppm NOx to less than 30 ppm NOx

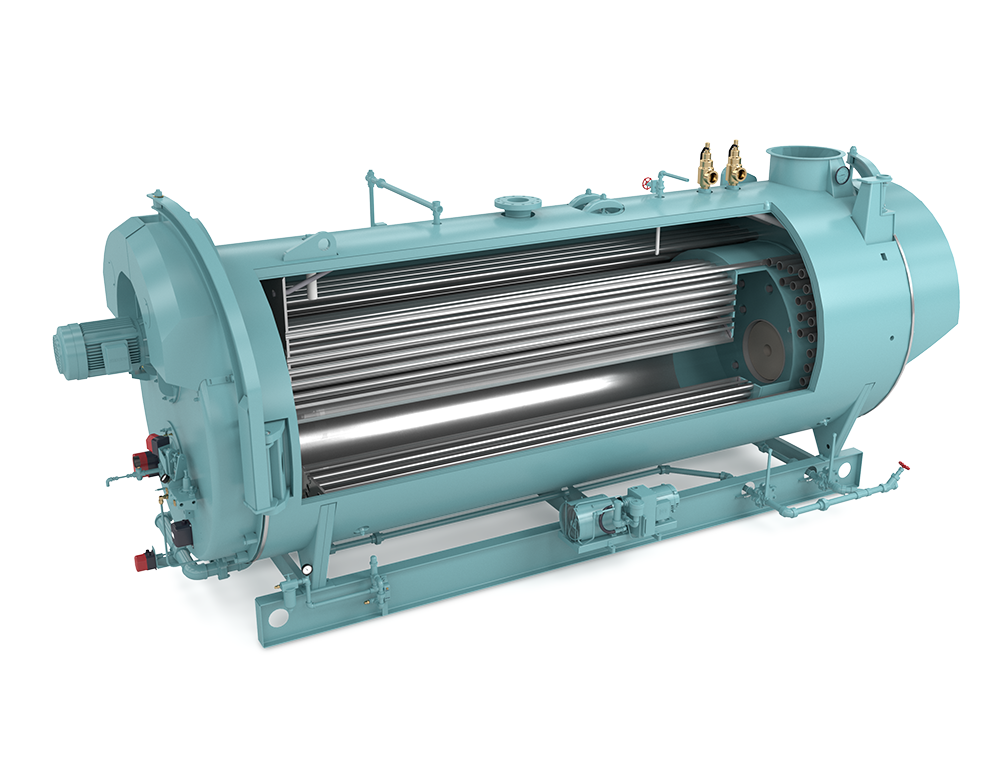

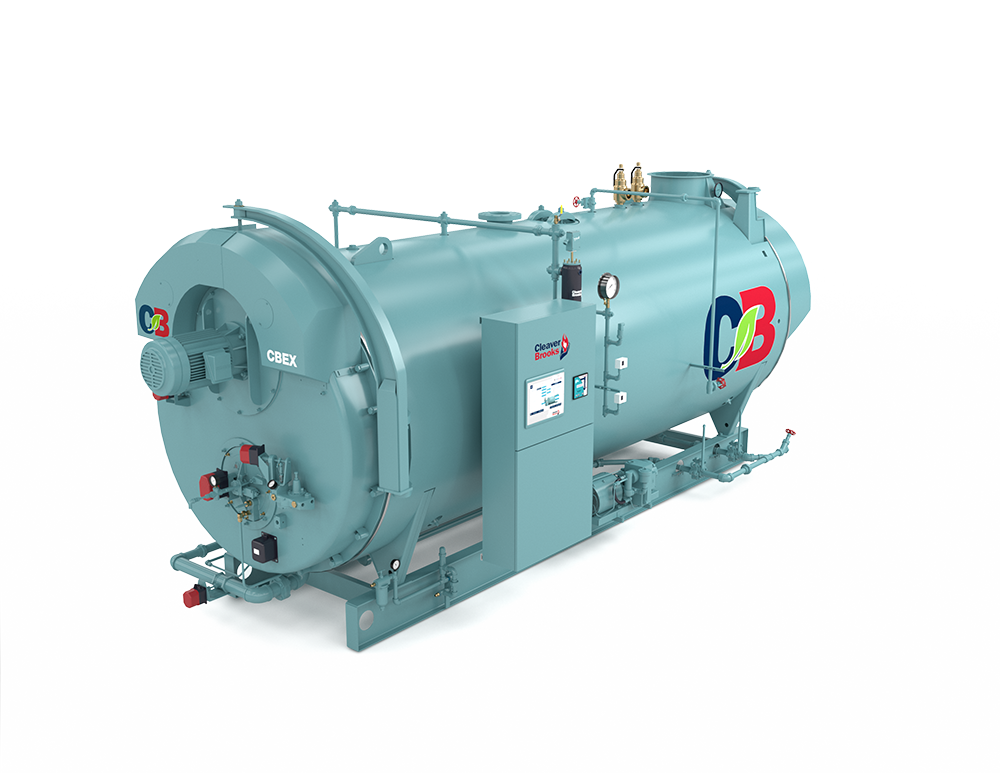

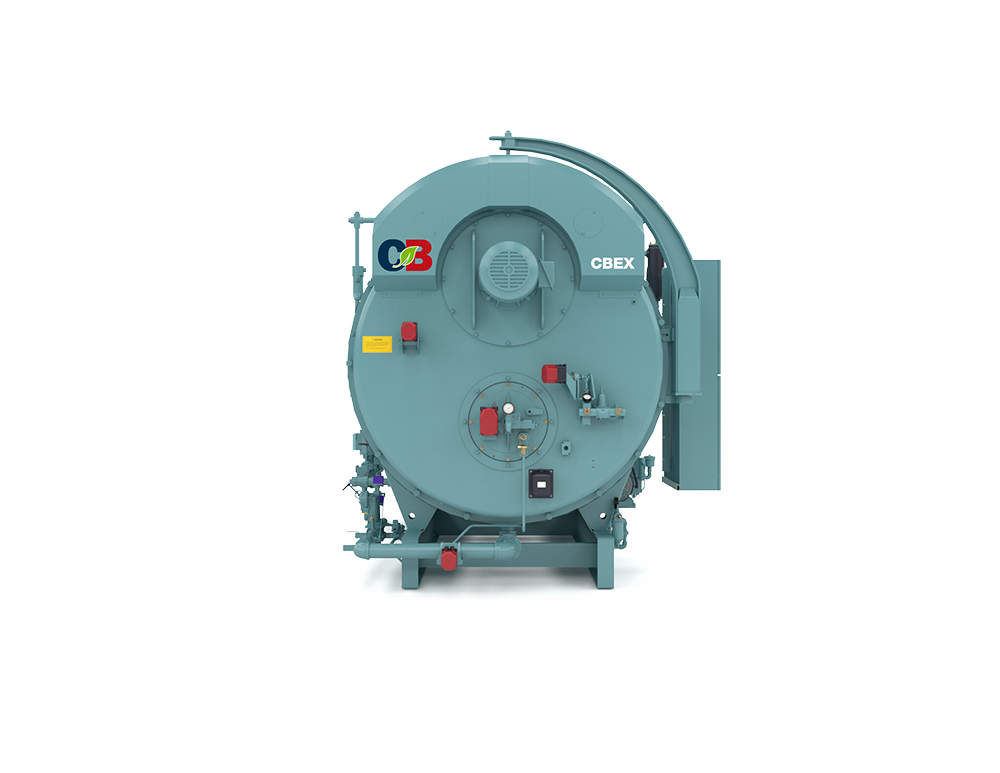

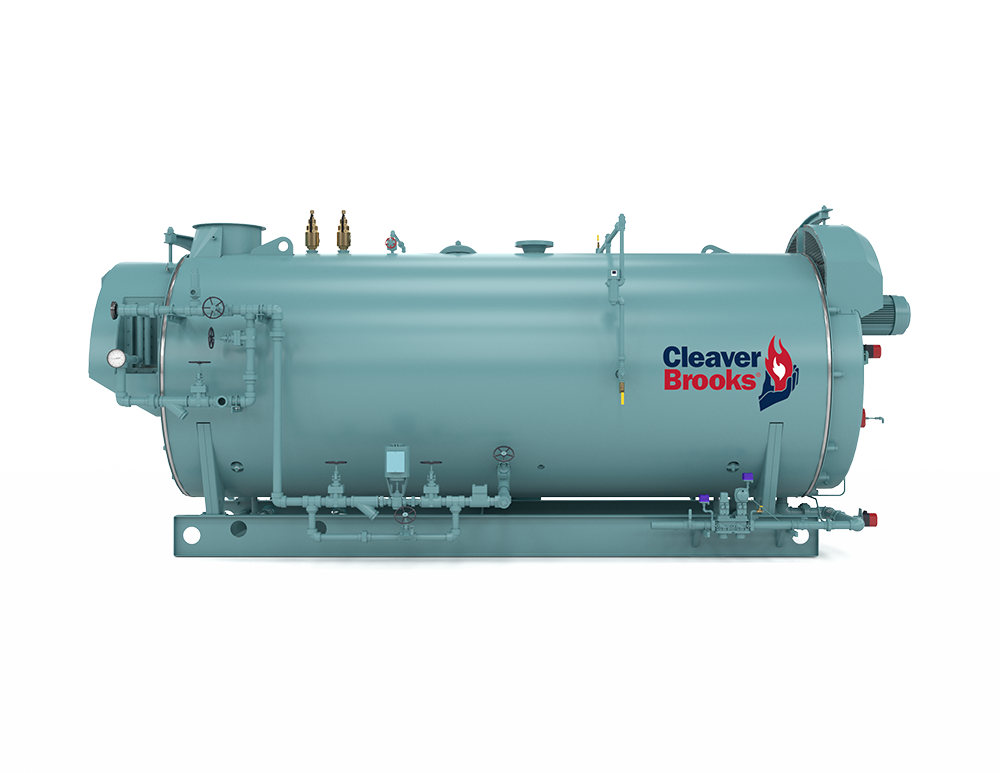

Model CBEX

Using advanced engineering methods, design engineers designed the CBEX to optimize every component of the boiler, including the burner, the furnace, and the tubes, in order to provide optimally balanced heat release zones and minimizing thermal stresses in the boiler. Extended heat transfer tubes only found in EX systems uses Computational Fluid Dynamics (CFD) calculations to optimize the geometry of the tube and increase heat transfer by 85%. The result of the advanced heat transfer design is higher efficiency in a smaller footprint. Reduce fuel use with the optional stack economizer by recovering waste heat from flue gases and using it to preheat boiler feedwater. The LevelMaster low-water cutoff and pump control is the safest control available.

  • Steam up to 300 psig
  • 100 to 1,200 HP integral burner or 1,300 – 2,500 HP large capacity burner
  • 2 Pass
  • Natural gas/propane, #2 light oil, combination
  • Waterback or Dryback design
  • Offers 30 ppm NOx with 3% O2 across the 10:1 turndown range
  • Sub 5 ppm NOx without SCR available
  • Meets 10 ppm CO requirement

Model CBLE

The CBLE firetube boiler is a complete, single-source package including pressure vessel, integral burner, and controls. Components are designed and manufactured for reliability and long life, maximum safety, ease of maintenance, and the lowest emissions, guaranteed. Upgrade or retrofit your system with Cleaver-Brooks controls, economizers, water treatment systems, and all the other system components to build a state-of-the-art boiler room of virtually any size and capacity.

  • Steam up to 300 psig
  • 50 to 800 HP
  • 4 Pass
  • Natural gas/propane, #2 and #6 oil, combination
  • Alternate fuel capability
  • Waterback or Dryback design
  • 60 ppm, 30 ppm, 9 ppm and 5 ppm NOx emission rates are available

Model CBJT

The CBJT is a complete package, including pressure vessel, integral burner, and controls. Engineered by Cleaver-Brooks to be a fully compatible boiler and burner package featuring excellent fuel-to-steam/water efficiency, space savings, and low emissions. It is ruggedly contructed for hot water or low and high-pressure steam applications. For customers who prefer the jet burner design, the CBJT provides the highest value, with a focus on safety, ease of maintenance, lowest emissions and the flexibility to add desired options to further enhance the package. Upgrade or retrofit your system with Cleaver-Brooks controls, economizers, water treatment systems, and all the other system components to build a state-of-the-art boiler room of virtually any size and capacity.

  • Steam up to 300 psig
  • 100 to 1,600 HP
  • 2, 3 and 4 Pass
  • Natural gas/propane, #2 light oil or combination
  • Dryback or Waterback design
  • Available to < 30 ppm NOx emissions on 2 & 3 pass models
  • Available to <9 ppm NOx emissions on 4 pass models

Model ICB

Integrated package includes pressure vessel, ProFire® packaged jet burner, controls, and the latest advances in combustion technology. Upgrade or retrofit your system with Cleaver-Brooks controls, economizers, water treatment systems, and all the other system components to build a state-of-the-art boiler room of virtually any size and capacity.

  • Intercooled back boiler design
  • 3 – pass
  • ProFire packaged jet burner
  • Access to all tubesheets without confined-space limitations/issues
  • Options for 30 ppm NOx control
