Cleaver-Brooks Deaerators
- Removes oxygen and other dissolved gases in the boiler feedwater including carbon dioxide
- Reduces chemical and boiler blowdown costs while protecting the boiler and system from corrosion
- Provides level control and alarms, pump control and alarms, steam pressure control and alarms
- Available for new equipment and conversions

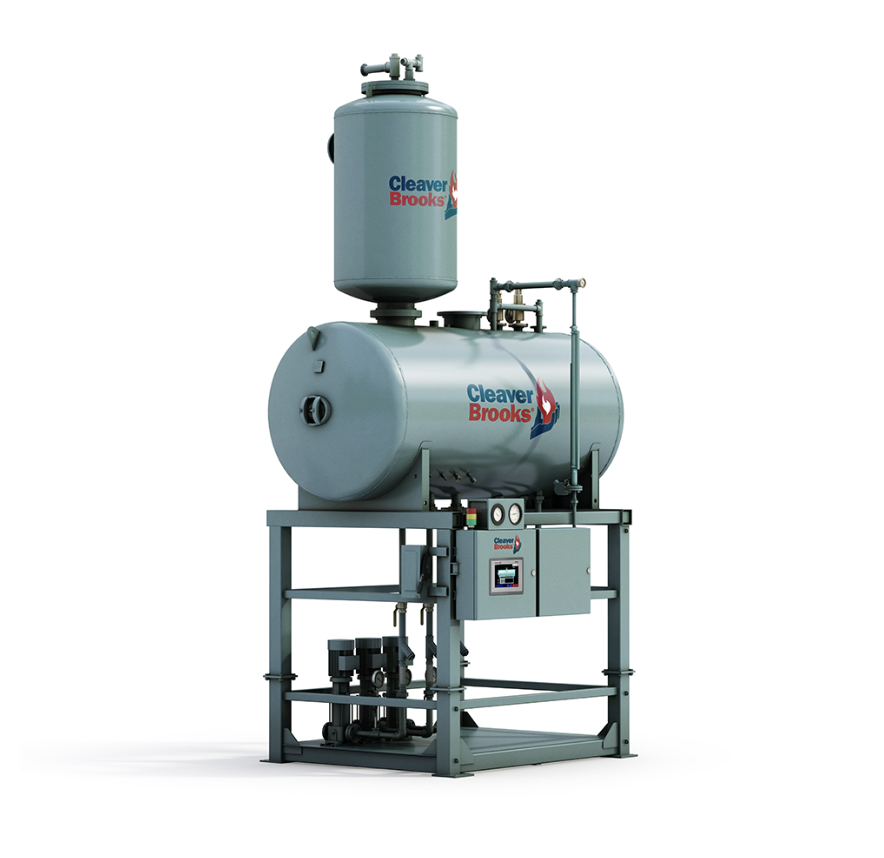

BoilerMate® Deaerator
The BoilerMate® deaerator is a pressurized packed column design where water is cascaded through a unique column design removing dissolved oxygen in boiler feed water and eliminating carbon dioxide. Flash steam from high temperature condensate return assists in deaeration improving the overall system efficiency.
- Packed column deaerator
- 1,500 – 135,000 lbs/hr
- On/off and variable speed pumping
- Self-cleaning water spray valve
- Pressurized tank reduces flashing and minimal venting

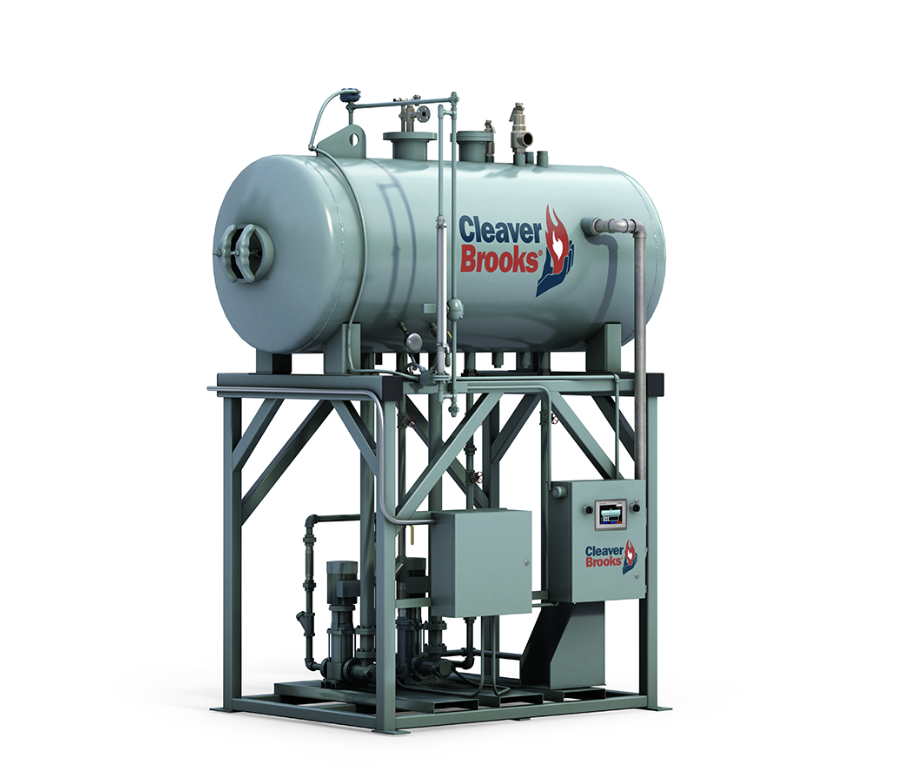

SprayMaster Deaerator
The Cleaver-Brooks SprayMaster deaerator assures high purity feedwater by removing oxygen and other dissolved gases in boiler feed and maintaining consistent temperature feedwater to your steam boiler.
- Spray Type Deaerator
- 7,000-280,000 lbs/hr capacities
- On/off and variable speed pumping
- Low headroom design

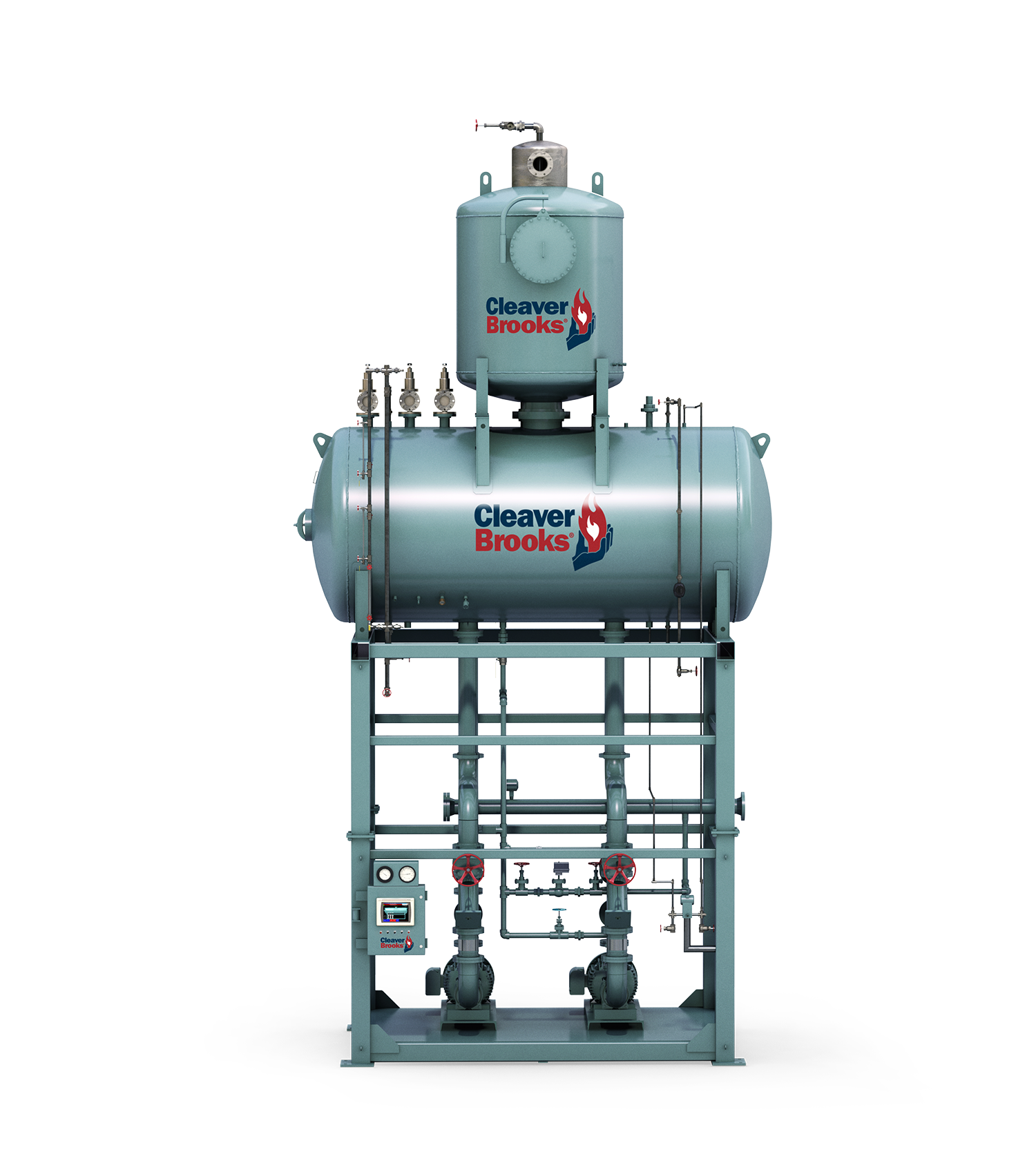

TrayMaster Deaerator
The TrayMaster deaerator is a pressurized, low-maintenance system designed to remove dissolved oxygen in boiler feedwater and eliminate carbon dioxide. This deaerator is offered in vertical and horizontal tray configurations.
- Vertical or horizontal tray column design
- Largest capacities available
- Most effective at oxygen removal
- Model TMV: 30,000 – 500,000 lb/hr
- Model TMH: 500,000 – 1,000,000 lb/hr
- On/off and variable speed pumping

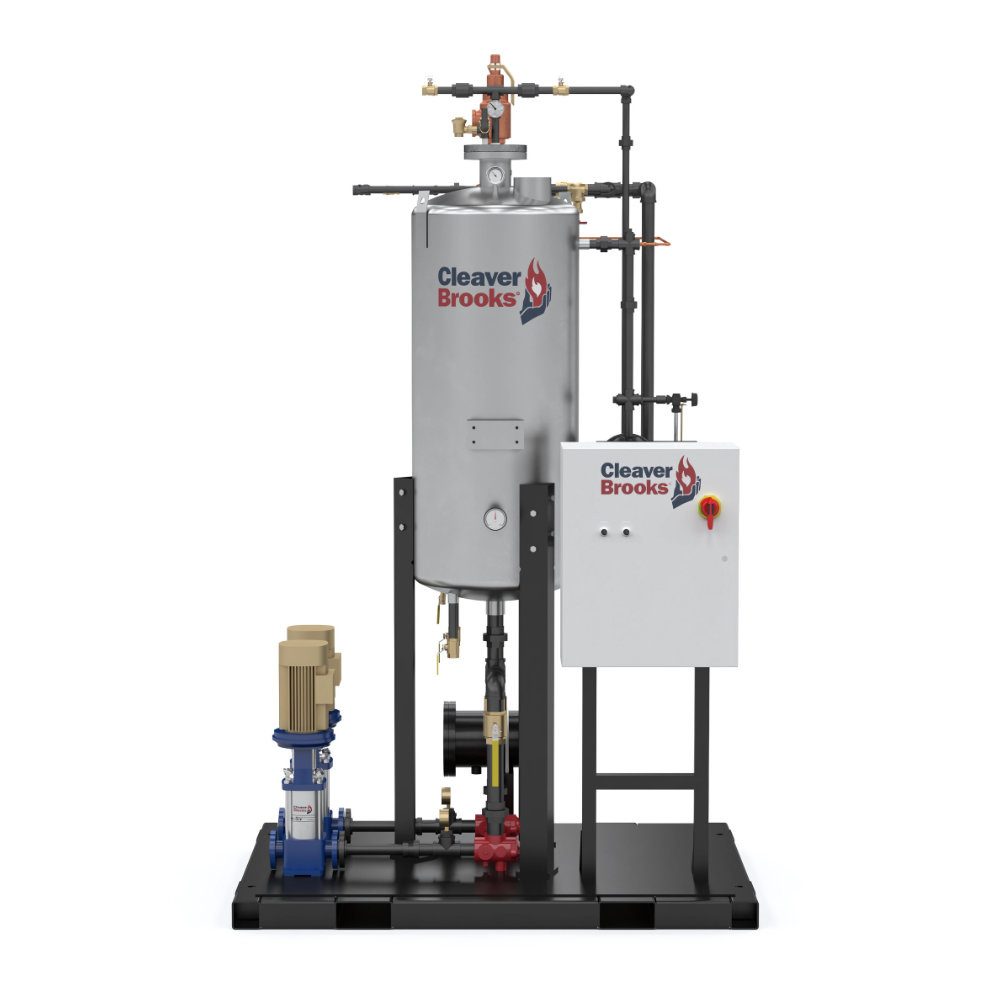

MiniMate® Deaerator
The MiniMate® deaerator is a pressurized packed column design where water passes through a labyrinth of packing materials specially designed to agitate water and remove dissolved oxygen and carbon dioxide in boiler feed water.
- Packed column deaerator
- 2,000 – 7,000 lbs/hr
- On/off pumping
